Features
Two channels of active speaker level inputs (up to 40V input handling)
Fixed and variable outputs with discrete level controls
AccuBASS® processing for correction of bass roll-off
Load Selection Switch
GTOTM Signal Sensing
Ground Isolation Switch
ACR-1 dash remote inluded
Compact design

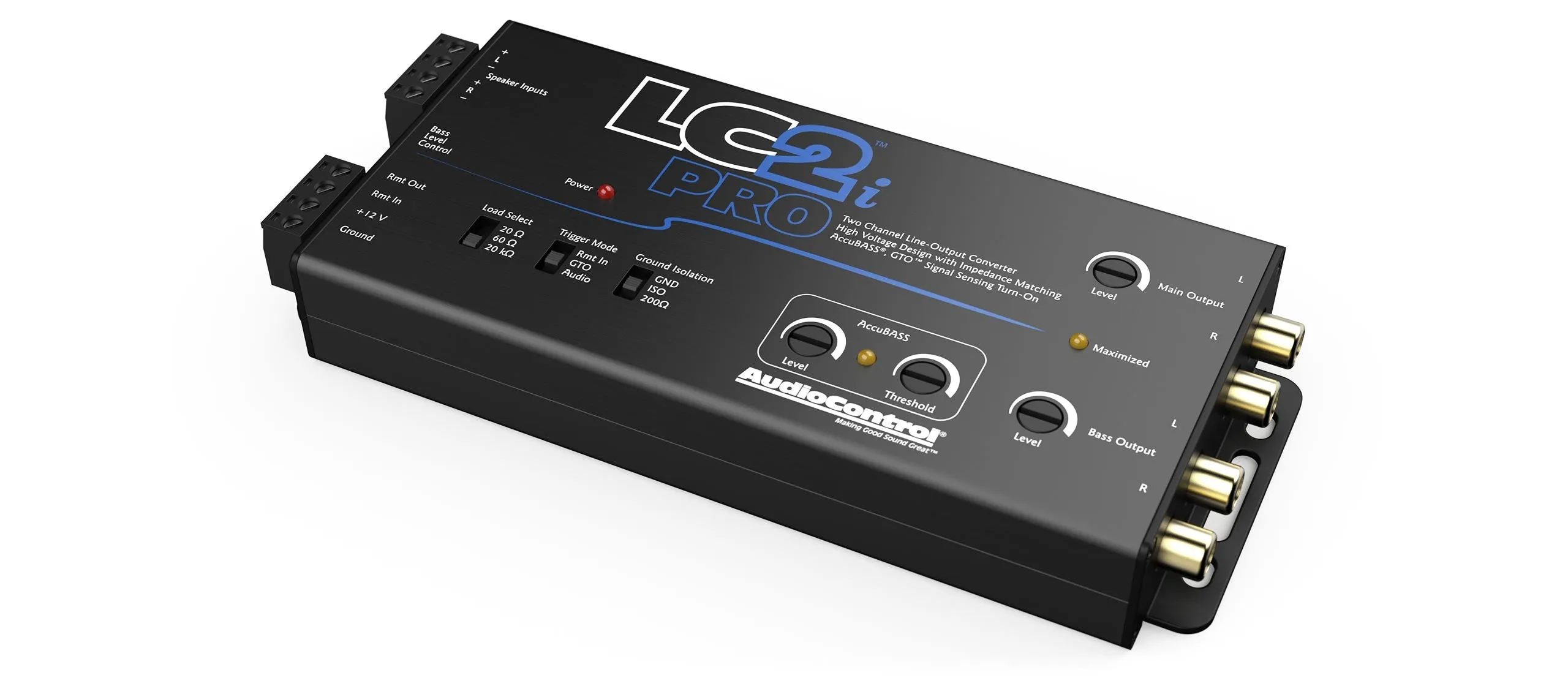

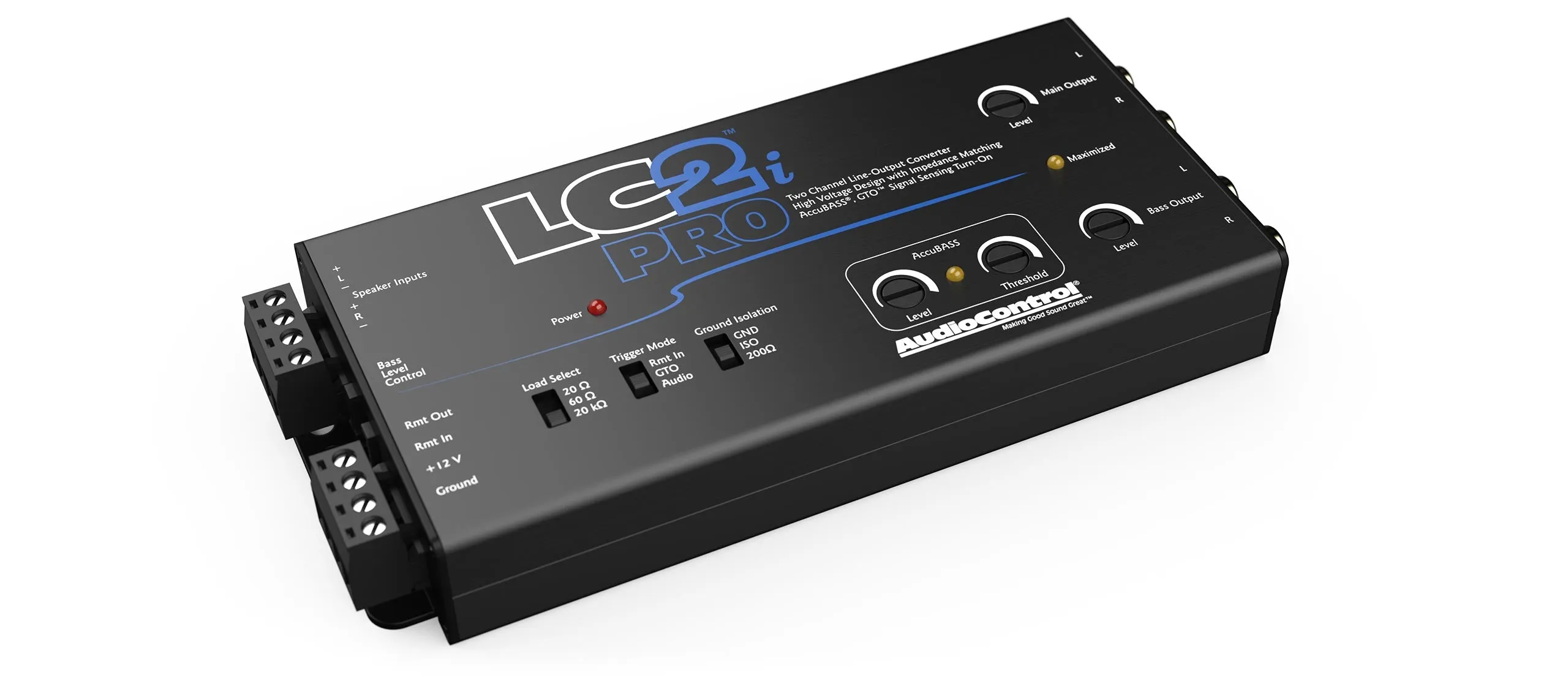

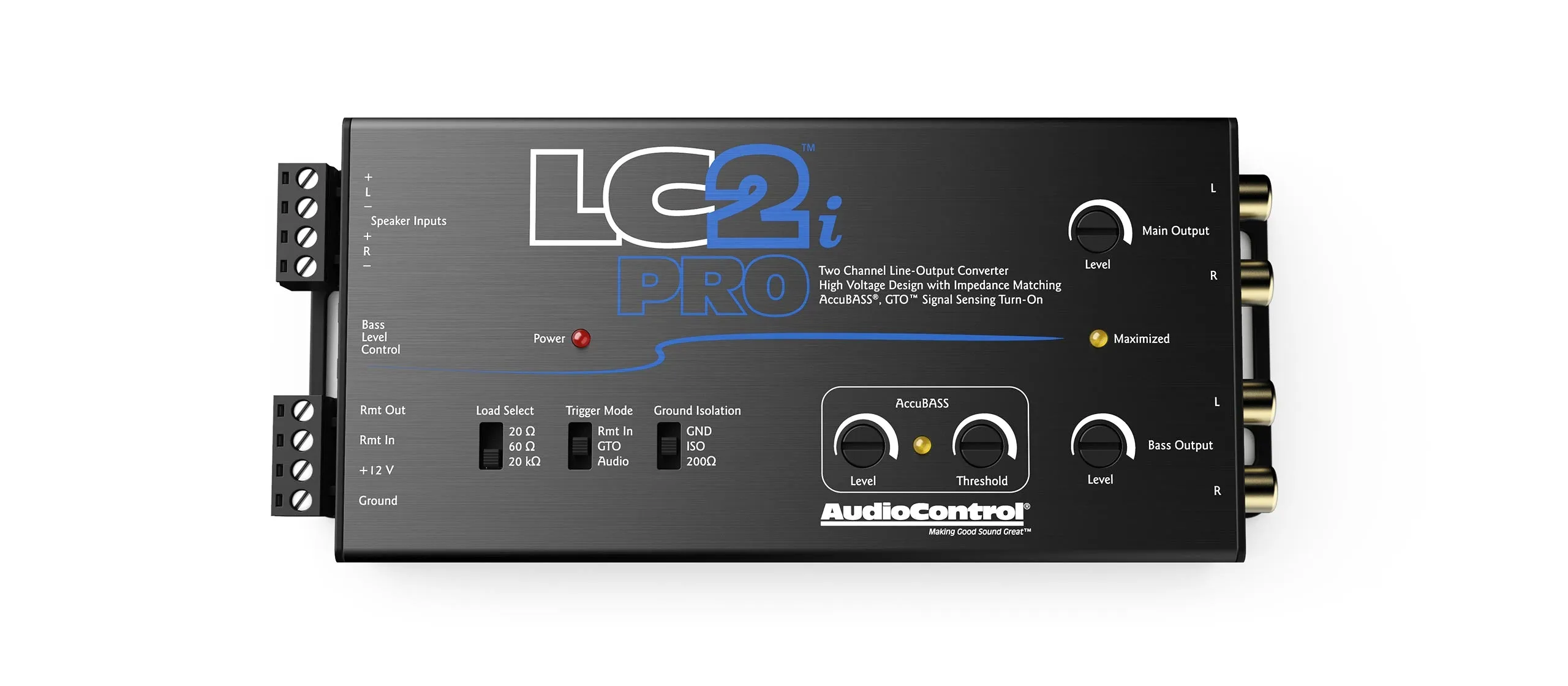

The LC2i PRO join ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC2i PRO will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12 volt inputs. Compensate for factory bass roll-off with AudioContol’s patented AccuBASS® and control your sub with the included ACR-1 level control.
Inputs
Speaker Level Input: 1 (2 channels)
Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
Line Level Input Impedance: 7kΩ
Outputs
Preamp Outputs: 2 (2 channels main, 2 channels bass)
Maximum Output Level: 9.5Vrms/13V peak
Output Gain: /- 12 dB
Output Impedance: 150Ω
Performance
Total Harmonic Distortion: 0.01%
Signal to Noise: >110 dB
Frequency Response: 20 Hz – 50 kHz ±1 dB
Weights & Amp; dimensions
Dimensions: 6.9″L x 3″D x 1″H (including speaker connectors)
Weight: 0.75 lbs. (0.34 kg)
