Product Details

ELECTRICAL SPECIFICATIONS

Frequency Range MHz698-9601690-21702300-25002500-27003300-4000
Gain dBi3.04.05.56.05.5
VSWR≤ 2.0≤ 1.8≤ 1.8≤ 1.8≤ 1.8
PolarizationLinear Horizontal
PIM 3rd Order 2x20W≤-150 dBc
Horizontal Beam-width360°
Vertical Beam-width110°68°27°31°30°
Input Impedance50 Ω
Max. Input Power50 W
Lightening ProtectionDC Ground

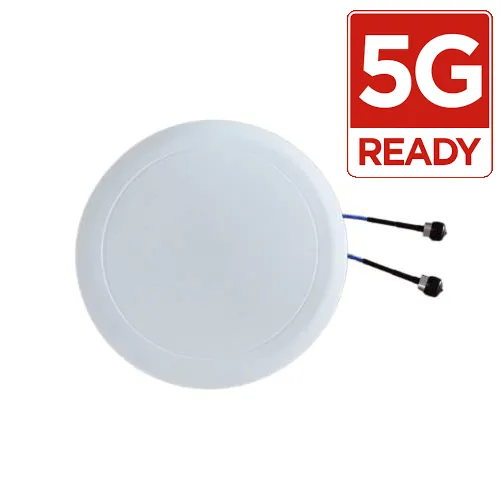

The Blackhawk Large Ceiling MIMO antenna is part of the slim series range measuring only 19mm thick. The thin and compact white design is only 28cm in diameter allowing the install to be visually unobtrusive making it ideal for deployment in hotels convention centres and other venues where aesthetics are of primary importance. Indoor ceiling antennas are perfect for applications that require a 360°  beamwidth for complete internal coverage.

This is the ideal indoor antenna for mobile repeater systems were two Cel-Fi’s are used to provide dual-frequency or dual-carrier solutions. The low -150dBc rating ensures it will provide consistently distributed mobile phone service from both Cel-Fi boosters.

Connector2 x N Female/ 4.3-10 DIN Female
Dimensionsᴓ 280 x 19.0 mm
Weight0.55 kg
ColourWhite
Reflector MaterialPCB
Radome MaterialABS (UV Stabilised)
Operating Temperature -40°C to 65°C

Weight0.2 kg

Blackhawk Slim Series Large Ceiling MIMO 698-4000MHz 3-6dBi Antenna -150dBc PIM
  • DefaultTitle

$ 56.25

$ 43.27
