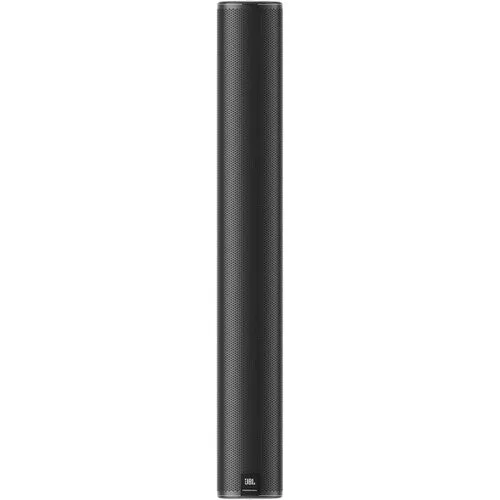

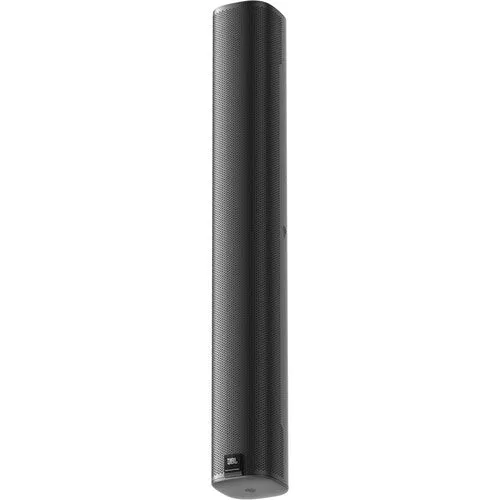

Great for conference/meeting rooms, lecture halls, retail stores, and other environments in need of a stylish, compact, and high-performing column array, the black JBL COL600 is an elegant 24" column speaker that's designed to provide optimum coverage for any listening area. The speaker is designed to be installed flat to a wall and features a built-in 10° down-tilt, which aims the sound at the listener and away from the ceiling.
The COL600 requires a 80W continuous (240W peak) amplifier to power the two 5x2.25" racetrack woofers and single 1" tweeter, which offer a frequency range of 70 Hz to 20 kHz with a peak SPL of 111 dB. Additionally, the integrated 20W transformer allows for use with 70/100V distributed speaker lines. A set of mounting brackets provides you with an array of installation options.
Features
- Two 5 x 2.25" Racetrack Woofers
- 1" Tweeter
- 24" Tall with Shallow 3.7" Depth
- 160 x 110° HxV Coverage
- Built-In 10° Downward Tilt
- Built-In Multi-Tap Transformer (70/100V)
- 60W Continuous / 320W Peak Power Output
- 111 dB Peak SPL Output
- 70 Hz to 20 kHz Frequency Range

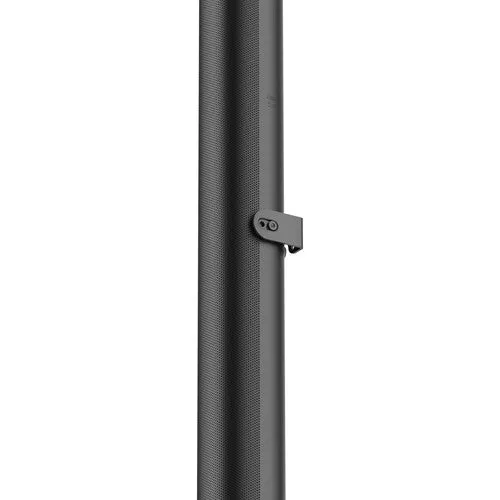

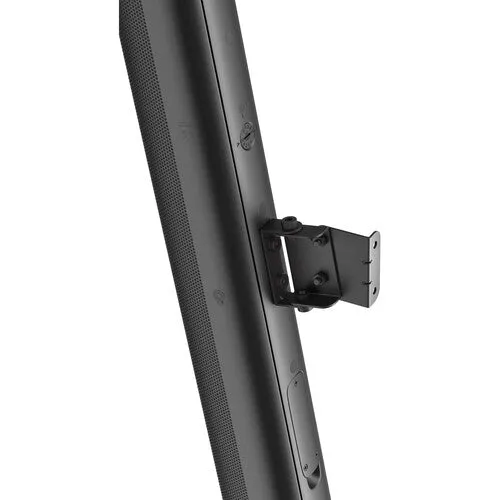

- Includes Versatile Mounting Brackets
Specifications
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
2-Way
|
| Power Handling |
For 100 Hours:
60 W RMS
120 W Program
240 W Peak
|
| Constant Voltage / Transformer Taps |
100 V:
20 / 10 / 5 W
70 V:
20 / 10 / 5 / 2.5 W or 8 Ohms Bypass
|
| Impedance |
7 Ohms (Minimum)
8 Ohms (Nominal)
|
| Transformer Wattage |
20 W
|
| Enclosure Type |
Bass-Reflex
|
Drivers
| HF Driver |
1x 1" / 2.5 cm Tweeter
|
| LF Driver |
2x 5" / 12.7 cm
|
Performance
| Frequency Range |
70 Hz to 20 kHz -10 dB
|
| Frequency Response |
105 Hz to 20 kHz ±3 dB
|
| Maximum SPL |
111 dB (Peak)
106 dB (Continuous)
|
| Sensitivity |
86 dB
|
| Coverage Angle |
160° H x 110° V
|
| Directivity |
7.8 dB (Directivity/Q Factor)
8.9 dB (Directivity Index)
|
| Recommended High-Pass Filter |
70 Hz
|
| Maximum Input Voltage |
21 V RMS
42 V Peak
|
| Transformer Insertion Loss |
<1 dB
|
Connectivity
| Inputs/Outputs |
1x Block 4-Pin Speaker Input/Thru
|
| Maximum Wire Gauge |
14 AWG / 8 mm
|
Environmental
| Environmental Protection |
No
|
Physical
| Color |
Black
|
| Mounting |
4x M6 Bracket Point (Each Side, Rear)
|
| Construction Material |
ABS, Polycarbonate
|
| Dimensions |
23.6 x 4.1 x 3.7" / 59.9 x 10.4 x 9.4 cm
|
| Weight |
7.8 lb / 3.5 kg
|
Packaging Info
| Package Weight |
10.105 lb
|
| Box Dimensions (LxWxH) |
29.1 x 7.7 x 6.5"
|
