Product Details
＋

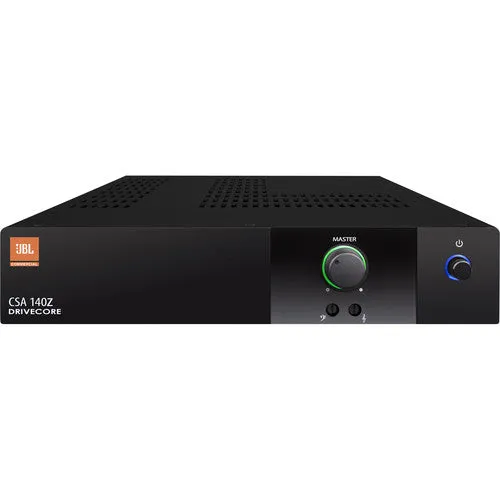

The JBL® Commercial Series of Amplifiers are a professional tool designed and built for Installed sound applications. There are both single channel and two channel models. They provide amplification with a choice of low impedance, 70V or 100V outputs.The product includes a rack mounting kit for installations to a cabinet. The system can be easily expanded with additional JBL Commercial Series products. Provisions are included for a remote volume control using the JBL CSR-V control module.
Features:
- 1 channel output
- Integrated Output Transformer to drive 70V or 100V speaker systems
- Ideal for commercial and industrial use
- System may be expanded by adding JBL Commercial Series Mixers and Mixer-Amplifiers.

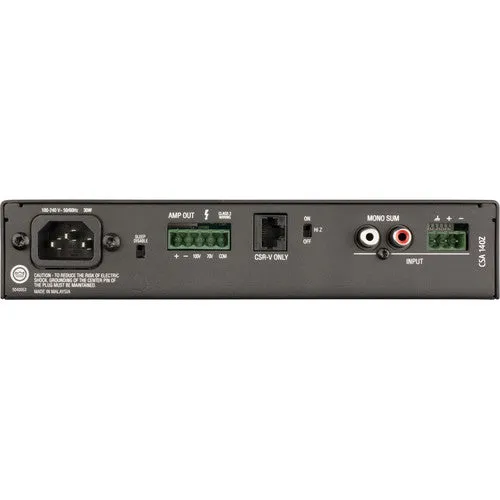

- Euro-block type mic/line input connectors and output connectors
- Independent Bass and Treble controls for each output channel
- Remote volume control capability using JBL CSR-V module and standard Ethernet cable
- Utilizes Crown’s DriveCoreTM technology providing excellent audio performance with high efficiency
- Power Output: 40W/80W/120W
- Output Channels: 1
- Input Sensitivity: 1.4Vrms for 8-ohms
- Phantom Power: 27VDC
- AC Line Voltage: 100 - 240V, 50/60 Hz
- Input Impedance: 20K ohms/50K ohms
- Dimensions: 1.7" x 8.6" x 11.9" (43.3mm x 218.5mm x 303.4mm)
