Installations are becoming increasingly more complex. Where microphones and speakers once had to be switched or even rewired by hand, now there are flexible routing options using presets and automated processes. The DSP matrix processor ZONE X 1208 from LD Systems enables all that and more.

Ethernet interface for remote control via the universal control software Xilica Designer; Ethernet Dante card optionally available

With its DSP hybrid architecture, the ZONE X 1208 can adapt your sound system for different circumstances and possible uses. Choose one of the different DSP templates and use the event scheduler to set up calendar-managed workflows with automated preset options. Everything you need: Twelve balanced mic/line inputs with low-noise microphone preamplifiers and separate switchable 48V phantom power as well as eight balanced line outputs are available. There are also eight GPI and GPO logic ports which can be used e.g. for automated processes and the integration of third-party devices. The front panel with only 1 RU looks very tidy. The ZONE X 1208 is easy to set up and manage via Ethernet with the universal software Xilica Designer (Mac/Windows) providing an overview of all connections and settings. Thanks to the additional REMOTE bus connection, the ZONE X 1208 is already equipped for future remote panels and paging microphones from LD Systems. An Ethernet Dante card with 64 x 64 channels can be installed as an upgrade option for audio over IP applications. The Dante standard opens up a whole world of compatible devices from different manufacturers for all conceivable applications.

From routing and processing of different microphone and speaker groups, in a church for example, to complex multi-room installations with calendar-managed routing for different configurations - the ZONE X 1208 makes everything possible.

Features

• DSP processor with hybrid architecture that allows users to adapt to different installation requirements via templates
• 40-bit floating point DSP engine with Analog Devices dual core SHARC and ARM Cortex A5 processor
• New generation Linux operating system
• Premium microphone preamplifiers and high resolution 32 bit-AD/DA converters
• 12 balanced audio mic/line inputs with 48V phantom power selection per channel
• 8 balanced line outputs
• 8 GPI and 8 GPO logic ports
• REMOTE bus for integration of future remote panels and paging microphones from LD Systems

Specifications

• Product type - DSP audio matrix for fixed installation

• General dataAudio inputs - 12 balanced mic/line inputs 1 remote bus audio input
• Audio outputs - 8 balanced line outputs
• Logic inputs - 8 GPI - activation via ground connection.
• Logic outputs - 8 GPO – modes: LED (3 mA) or sink (300 mA), per output selectable
• Remote bus - Yes

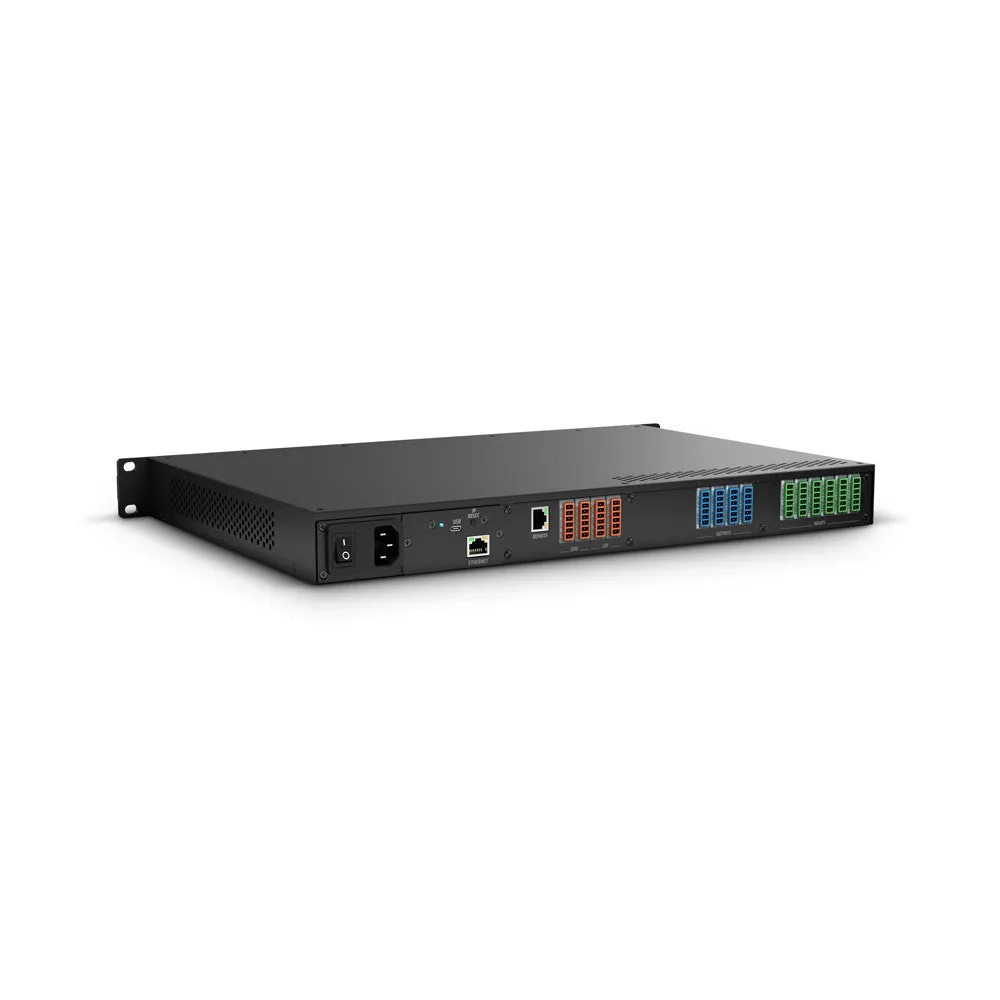

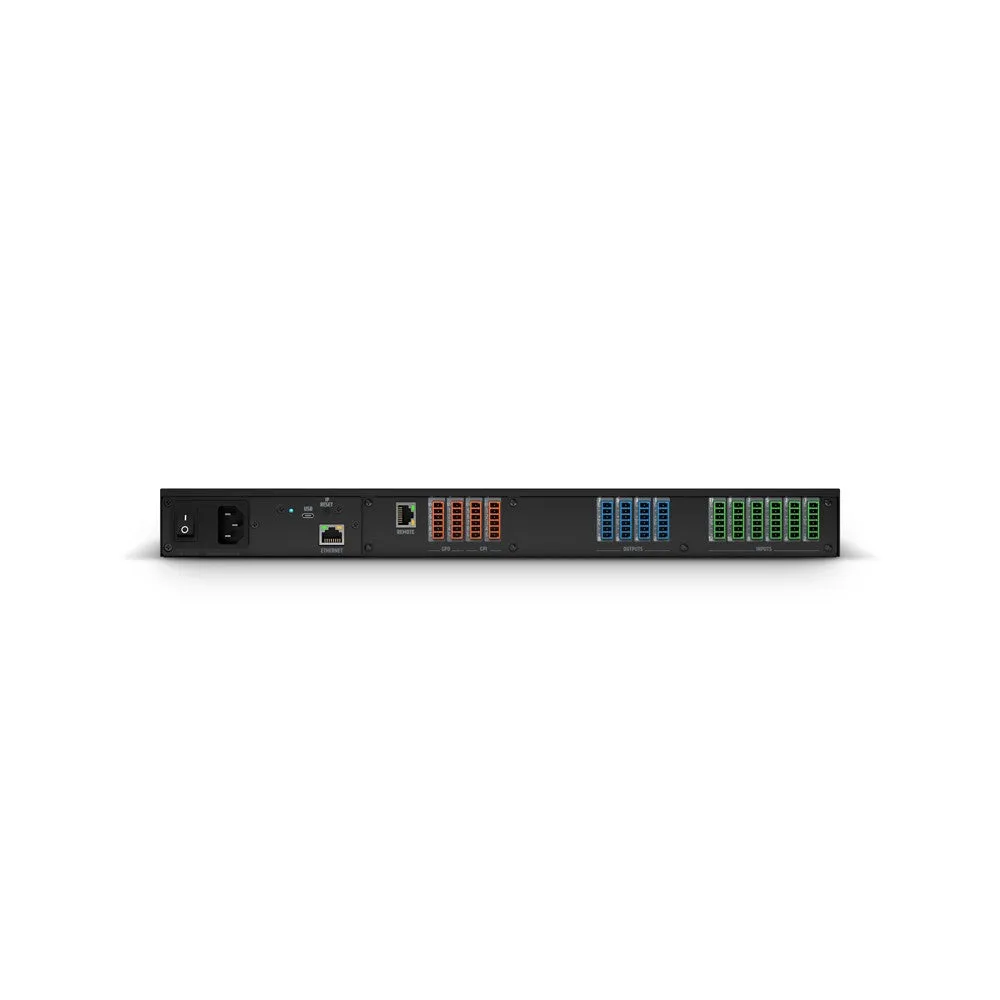

• ConnectorsInputs/outputs: 3-pole terminal block, pitch 3.81 mm;
• micro USB B service connector, remote IN RJ45, Ethernet RJ45

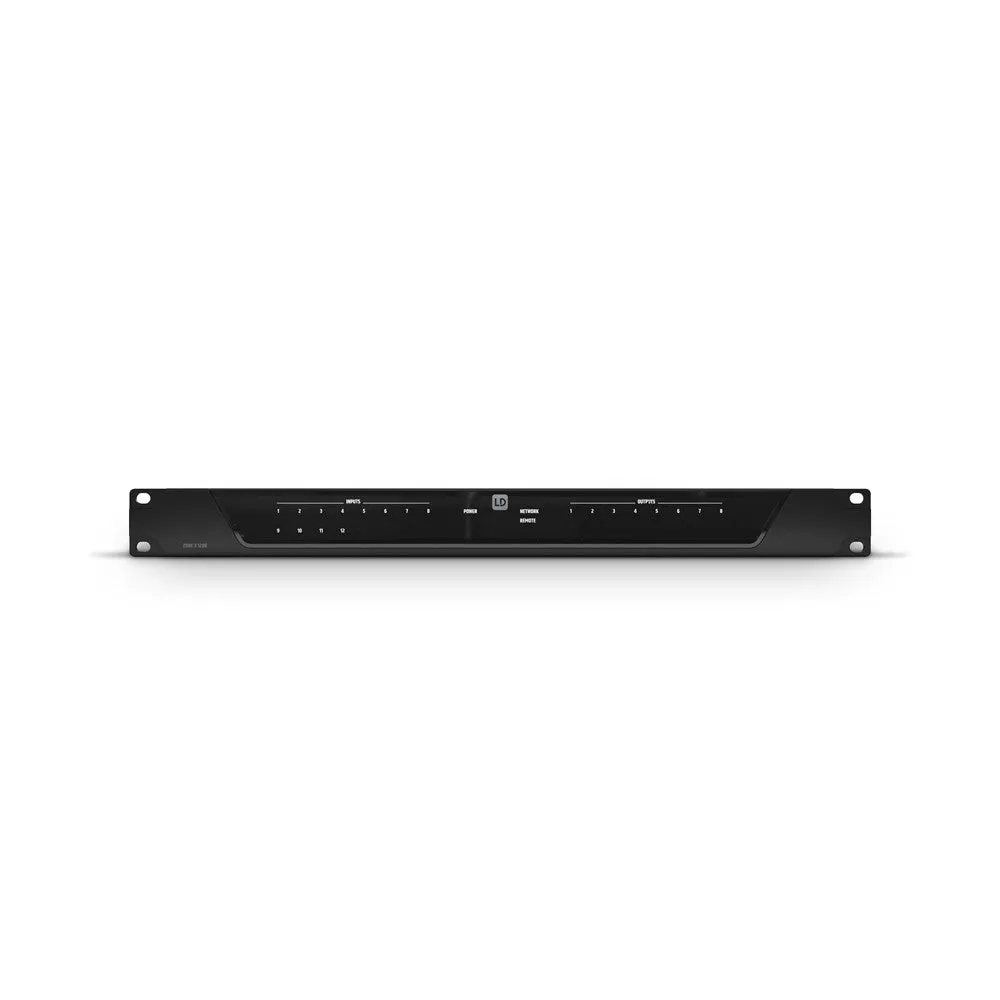

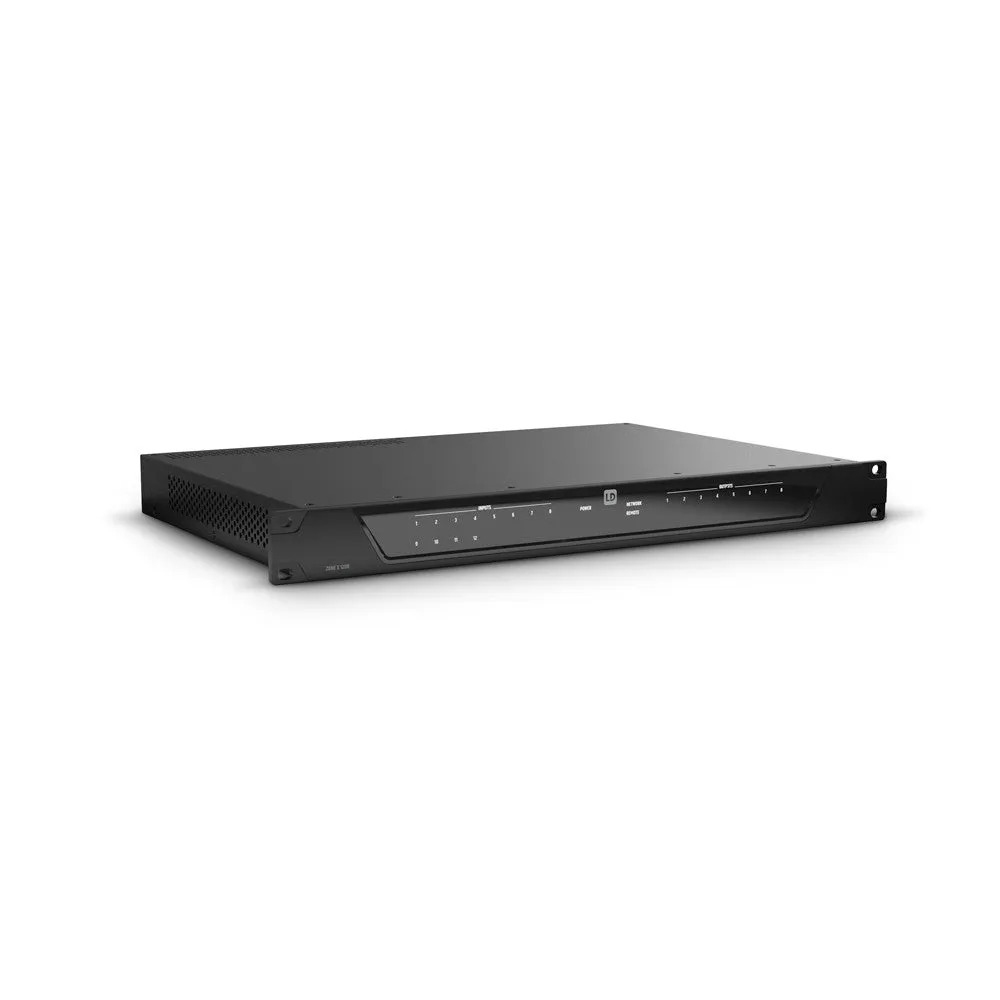

• LEDs - Front: “POWER”, “NETWORK”, “REMOTE“, inputs 1 – 12 and outputs 1 – 8: White signal LED, red clip LED
• Front panel controls - No
• Rear panel controls - Mains ON/OFF, “IP RESET”
• Expansion slots - for Ethernet card
• Cooling - Passive convection cooling
• Power supply - Wide-range switch mode power supply
• Power supply connector - 3-pole power supply socket (IEC)
• Operating voltage - 90 – 240 V AC; 50/60 Hz
• Mains fuse - T2.5 A L / 250 V
• Mains OFF-ON inrush current - 21 A
• Power consumption, idle mode - 23 W
• Max. Power consumption - 60 W
• Operating temperature - 0 °C ... 40 °C (max. 60 percent relative humidity)
• Width - 19" rack (483 mm)
• Height - 1 HE (44.5 mm)
• Depth - 315 mm (with terminal blocks)
• Weight - 3.8 kg
• Rack distance to the next device (height) - 1 HE
• Rack depth (required) - 350 mm
• Performance specificationsNominal input sensitivity - -22 dBu (sine wave, 1 kHz, max. gain)
• Nominal input clipping -  20 dBu (Sine wave, 1 kHz)
• Harmonic distortion (THD N) - <0.003 percent (Line IN – OUT, 13 dBu signal, 20 Hz – 20 kHz, gain 0 dB)
• Intermodulation distortion (IMD), SMPTE - <0.01 percent (-10 dB under clip), analyzer bandwidth 90 kHz
• Frequency response - 15 Hz – 22 kHz ( /-0.15 dB)
• Input impedance - Line: 4 kOhm (balanced)
• Signal-to-noise ratio - >117 dB @ 20 dBu, gain 0 dB, 20 kHz bandwidth, A-weighted
• Dynamic range (AES17) - 112 dB
• Channel crosstalk - 120 dB @ 100 Hz, 120 dB @ 1 kHz, 105 dB @ 10 kHz
• Common mode rejection, CMRR IEC - >60 dB (1 kHz)
• Max. Gain - 42 dB
• Digital specificationsDSP - 40-bit floating point processing, Analog Devices dual core SHARC processor
• System latency - 4.3 ms
• Resolution AD/DA converter - 32 Bit
• Sampling rate AD/DA converter - 48 kHz
• Remote bus specifications, measured between REM In and REM Out
• Nominal input sensitivity - 20 dBu
• Nominal input clipping - 20 dBu
• Harmonic distortion (THD N) - <0.006% ( 18 dBu, 20 Hz – 20 kHz)
• Frequency response -20 Hz – 20 kHz (0.1 dB)
• Input impedance - 50 kOhm (balanced)
• Signal-to-noise ratio - >105 dB ( 20 dBu, 20 kHz bandwidth, A-weighted)
• Common mode rejection, CMRR IEC - >65 dB @ 1 kHz
• Gain -0 dB
• Phantom power - 48 V DC / 500 mA

• Protection - Resettable fuse (internal)
