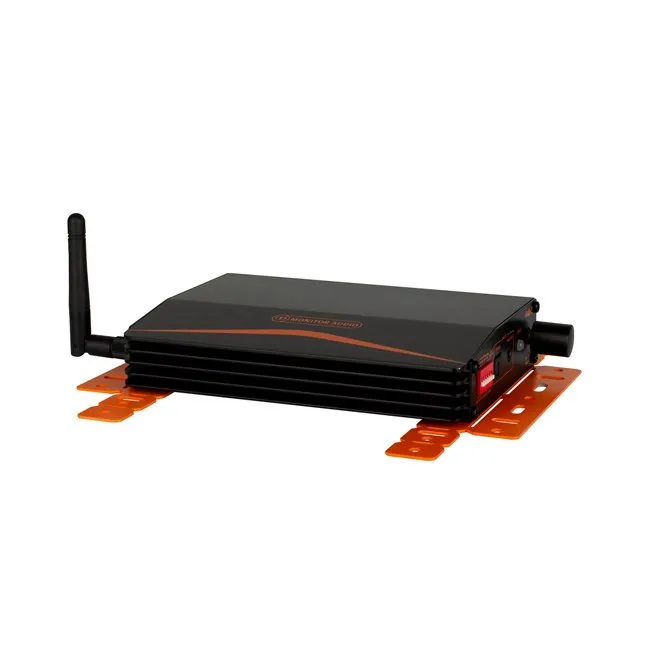

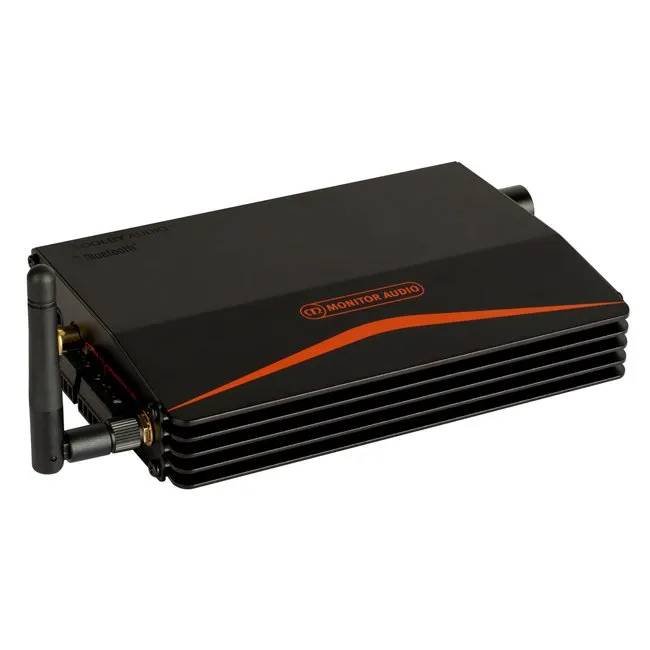

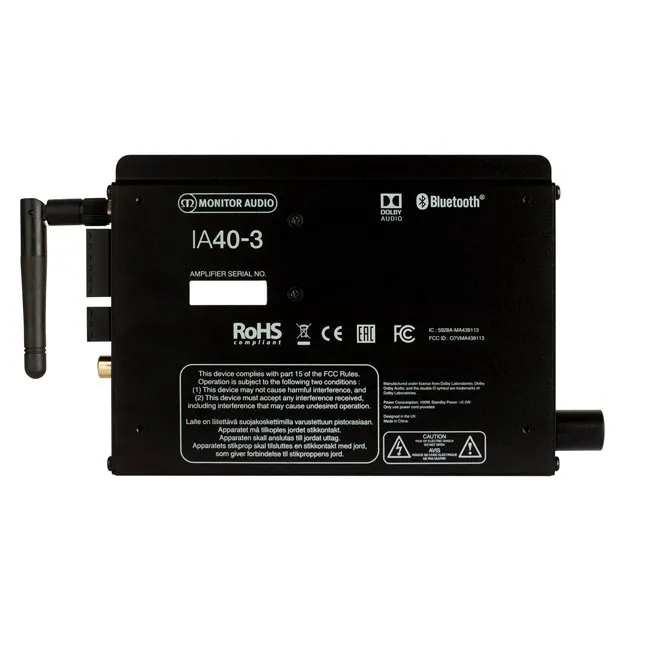

With the discreet IA40-3 it is a highly versatile amplifier featuring digital, analogue and Bluetooth inputs. With it been designed for easy installation, these bespoke fixings allow it to be positioned in multiple locations on a wall, cabinet, stand or even behind the television.
With this installation amplifier, it is ideal for smaller environments. The Monitor Audio IA40-3 Installation Amplifier will perfectly bring power to any in-ceiling speakers within the kitchen, loft room or even bedroom. It works beautifully when paired with Monitor Audio smaller bookshelf speakers in a bedroom, study or sitting room.

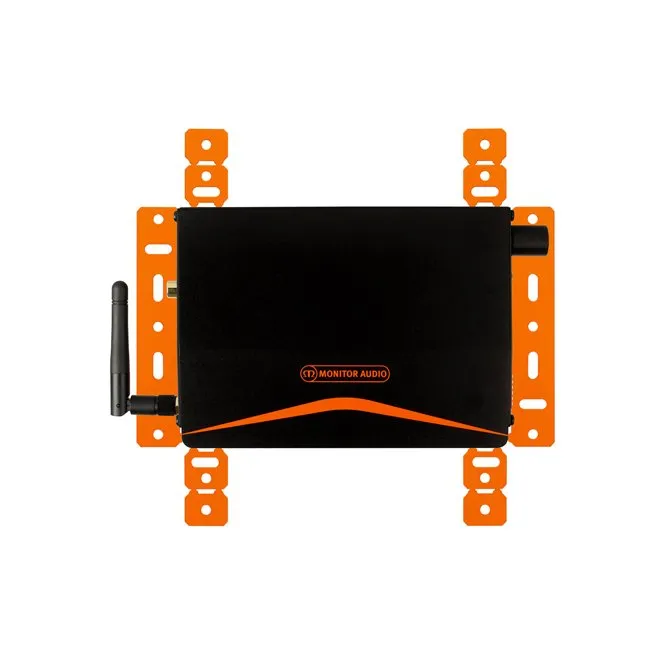

With the IA40-3 it can be mounted behind the screen, using the supplied bespoke bracket – to drive a Monitor Audio Passive Soundbar. With customisable brackets that can be bent to fit and have flexible break off sections for maximum installation versatility.
If any extra bass is required, an active subwoofer can be connected to the IA40-3 via the sub/line out. Whatever the audio source, this is an amplifier with all the right connections. The IA40-3 features optical and analogue inputs and the latest Bluetooth wireless technology, powered by Qualcomm aptX aAduio, to allow easy and superior pairing with mobile devices. The IA40-3 has been designed to be discreetly tucked away and with its unique heatsink fin it allows cooling in the ightest of spaces.
Specifications
Number of Output Channels 3
Power (W / Channel) | 4 ohms | 1 kHz
60W @ 1% THD N for 2 Channel
40W @ 1% THD N for 3 Channel
Power (W / Channel) | 8 ohms | 1 kHz
50W @ 1% THD N for 2 Channel
30W @ 1% THD N for 3 Channel
Input Impedance
10k Unbalanced
Output Impedance (Sub/Line Out)
1.47k
Input Sensitivity ~300 mV - Full Power
Maximum Input Voltage 2.3V
Signal to Noise (SN:R) > 84 dB Unweighted
Frequency Response ( -0.5dB) @ 1W 10 Hz - 20 kHz
Total Harmonic Distortion THD N@1 KHz < 0.05%
Dimensions (Excluding Mounting Brackets and Antenna (H x W x D)) 31.4 x 180 x 110.5 mm (11/4x 71/16x 43/8")
Dimensions (Including Mounting Brackets (H x W x D)) 32.6 x 196 x 182.5 mm (15/16x711/16x 73/16")
Mains Operating Voltage 100-240 VAC, 50/60Hz
Fuse Rating 3 A
Standby Power Consumption < 0.5W
Weight (Including Amp, RS232 Terminal Block, Speaker Terminal Block and Antenna) 0.484 kg
Bluetooth Yes
Bluetooth Range with Antenna (line of sight) > 20m
Bluetooth Version 4.1
Bluetooth Profiles A2DP, AVRCP
Audio Codec SBC, Apt-X
EQ The EQ dip switches apply a 3 dB boost at 120 Hz, 1500 Hz, and 8 kHz.
Sold As Single Unit
